Translation is regulated in LPS-activated human moDCs

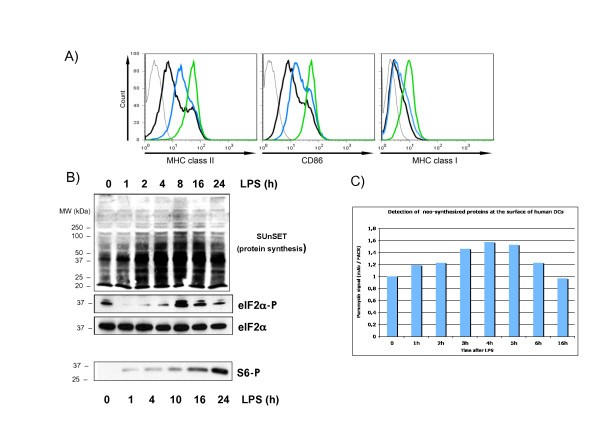

Human monocyte-derived DCs were activated with LPS and displayed the expected cell surface accumulation of MHC I, MHC II and CD86 as measured by flow cytometry (Figure 1A). The rate of protein synthesis in activated moDCs was monitored with puromycin incorporation using immunoblot or FACS analysis (SUnSET) [14]. Protein synthesis intensity was strongly increased upon LPS-stimulation and peaked at 4 h of activation, prior a steady decrease to basal levels (Figure 1B and 1C). As the rate-limiting step in protein synthesis is the initiation of mRNA translation, we investigated the status of translation factors involved in the regulation of protein synthesis. Thus, we monitored by immunoblot the phosphorylation of the alpha-subunit of eukaryotic translation initiation factor 2 (eIF2α), which prevents the assembly of ribosomal pre-initiation complexes [15]. Almost complete eIF2α dephosphorylation was detected between 1 h and 4 h after LPS-stimulation, correlating with the increase in protein synthesis. Interestingly, after several hours of LPS-stimulation eIF2α phosphorylation was recovered and even increased compared to the immature DC levels. Thus eIF2α phosphorylation is regulated during the maturation of human moDCs and correlates well with the regulation of mRNA translation in these cells.

Translation initiation is also controlled through the stimulation of the PI3 kinase/AKT/mTOR signal transduction cascade, which leads to the phosphorylation of eIF4E-binding proteins (4E-BPs) and of the S6 ribosomal protein (S6) by the ribosomal protein S6 kinase (S6K1) [16]. Both molecules have an important role in regulating cap-mediated translation and S6 phosphorylation represents a hallmark of protein synthesis activation. S6 phosphorylation was monitored in LPS-activated moDCs by immunoblot (Figure 1B). We confirmed that S6 phosphorylation is steadily and strongly increased over time of LPS-exposure and this in a correlated manner to the moDCs maturation phenotype.

Thus, protein synthesis is tightly controlled upon LPS-sensing by MoDCs and is likely to represent a functionally important aspect of human DC maturation. Furthermore, this process implies that specific mRNA molecules might be translationally regulated in response to eIF2α or S6 phosphorylation under these conditions.

mRNA translational engagement changes at late time points of DC-activation

In order to identify mRNA molecules potentially regulated at the translational level, the global engagement of mRNA molecules on polysomes was measured on LPS-activated moDCs by translational profiling [10, 11, 12]. Actively translated polysome-bound mRNAs (P) were separated from messenger free ribonucleoproteins (mRNPs, F) using sucrose gradient fractionation and visualized by denaturing agarose gel (Figure 2A). Efficient polysome separation was confirmed by the presence of 5S rRNA in the lighter fractions of the gradient (lanes 1-3), followed by fractions where only 18S rRNA was visible (lanes 4-5) and fractions in which an excess of large ribosomal subunit was detected (28S rRNA >> 18S rRNA, lanes 6-9). From fraction 11, a constant ratio of 28S over 18S rRNA was observed, thus indicating the presence of complete and functional ribosomes (Polysomes, lanes 11-19). Fractions 11 to 19 were pooled and polysome-bound RNAs were isolated (P). In parallel, total RNAs (T) were directly purified from moDCs without fractionation (lane 20). The integrity of purified RNAs was quantified to an average RIN-value of 7.6, thereby allowing for successful microarrays analysis (Figure 2B) [17].

In addition to non-activated cells (0 h), moDCs at 4 h and 16 h post-LPS stimulation were also chosen, since they represent two distinct activation states in which protein synthesis is either increasing (4 h), or decreasing (16 h), and in which the phosphorylation status of eIF2-α is radically different. No major difference in the polysomes sedimentation profiles was observed after the fractionation of the various DCs samples, confirming that actively translated mRNAs are present at all stages of DC maturation (not shown). To further identify translationally regulated mRNAs in maturing moDC, expression levels of all polysome-bound mRNAs were compared by microarray analysis (Affymetrix U133 Plus 2.0 GeneChip array comprising 54'675 probe sets) to those of unfractionated total mRNAs (translational profiling, Figure 2). Polysome-bound mRNAs (P) and total RNA (T) were isolated from moDCs generated from four different blood donors for three LPS activation time points (0 h, 4 h and 16 h), resulting in a total of twenty-four RNA samples to be analyzed. In addition to FACS characterization of the cells, the quality of the samples was further evaluated by comparing the total mRNA expression values of several DC-maturation markers from our experimental setting with available public databases values obtained under similar conditions [6]. Transcription of the co-stimulatory molecules CD80 and CD86, as well as the MHC I and II mRNAs were found to be all up-regulated after DC stimulation by LPS (see Additional file 1), thus confirming the quality of our samples and reliability of our analysis.

Global alterations of total and polysomal-bound mRNA as a function of time post-LPS was investigated, to obtain a comprehensive view of translation regulation in moDCs. The 54'675 probe sets present were first filtered on expression (signal > 100 in all tested conditions) to obtain a preliminary list of 7'709 probe sets. The 7'709 probe sets were then selected on fold change (applying a 2-fold cut-off), comparing Polysomal and Total mRNA at different timepoints. Between 0 h and 4 h post-LPS, among the 783 transcriptionally up-regulated genes (signal 0 h < signal 4 h), 662 genes (84%) were shared between total and polysomal RNA, 51 genes (6%) were unique to polysomal RNA, and 70 genes (10%) were unique to total RNA (Figure 3A). Among the 959 transcriptionally down-regulated genes (signal 0 h > signal 4 h), 597 genes (63%) were shared between total and polysomal RNA, 165 genes (17%) were unique to polysomal RNA, and 188 genes (20%) were unique to total RNA (Figure 3B). Between 4 h and 16 h post-LPS, among the 536 transcriptionally up-regulated genes (signal 4 h < signal 16 h), 456 genes (65%) were shared between total and polysomal RNA, 91 genes (13%) were unique to polysomal RNA, and 151 genes (22%) were unique to total RNA (Figure 3C). Similarly, among the 698 transcriptionally down-regulated genes (signal 4 h > signal 16 h), 355 genes (66%) were shared between total and polysomal RNA, 55 genes (10%) were unique to polysomal RNA, and 127 genes (24%) were unique to total RNA (Figure 3D). These results indicate that during DC maturation, transcription and translation intensity are relatively well coupled upon LPS-sensing, as suggested by the overall increase in protein synthesis at the onset of maturation. However, we evaluate to 30% (the mean percentage of the genes unique to polysomal RNA and total RNA) the proportion of translationally-engaged mRNA molecules, in which transcription and translation are not linearly connected. The polysome-bound (that is, translated) mRNAs were up-regulated and down-regulated with the same proportions indicating that translation regulation in DCs is probably targeting discrete subsets of genes, whereas the majority of genes are regulated by transcription and mRNA stability, a detailed description of these genes subsets is given in Additional file 2. Most of the identified genes were distributed in all biological activities with no clear functional clustering capable of unraveling a distinct pattern of regulation. However, an over-representation of protein synthesis genes was found in the genes identified as translationaly down-regulated at late time of maturation (see Additional file 2D).

Biological functions of translationally regulated mRNAs in activated moDCs

We decided to take a statistically unbiased approach to further identify entire functional pathways, which could be regulated at the translational level. Importantly, the data obtained from four different donors were homogenous and no major pattern variation for both total and polysomal-bound RNA expression was found, thus allowing statistical analysis (see Additional file 3, compare the four columns within each T or P).

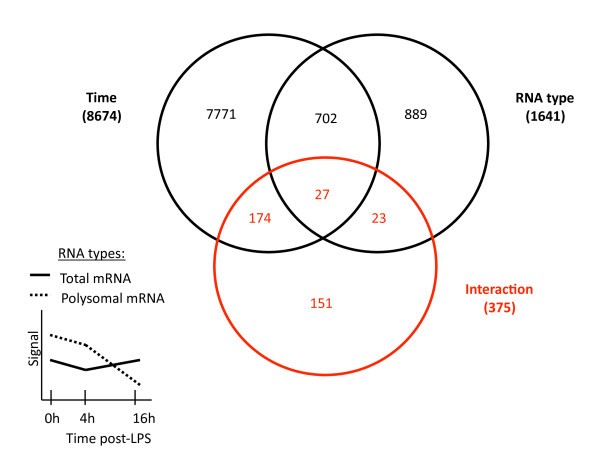

The 54'675 probe sets present on the Affymetrix GeneChip array were first filtered on flags (P in 50% 0 h or P in 50% 4 h or P in 50% 16 h) to obtain a preliminary list of 20,438 probe sets. A 2-way ANOVA with repeats on time was performed on 20,438 selected probe sets (using a false discovery rate of 0.05). 375 probe sets (2%) had a statistically significant interaction (Figure 4), indicating that only a relatively small subset of mRNA molecules were translationally regulated in LPS-activated moDCs (complete list in Additional file 4). From this list of translationally regulated genes and using the Ingenuity Pathway analysis software (IPA version 6.3), we were able to identify several major "biological functions" controlled at the post-transcriptional level during the activation of moDCs (Table 1).

The biological function with the most significative p-value for translational regulation was protein synthesis itself (26 molecules), including 3 translation factors among which was found eIF2α. Other identified pathways included "post-transcriptional modification" and "amino acid metabolism" comprising again some molecules involved in protein synthesis and amino acid modification (e.g. QARS, eIF4B, or INDO, DUSP2 and DUSP3).

As for molecules directly relevant to DC immune function, we identified genes involved in pathogen sensing (e.g.: OAS1, OAS2, LY96), antigen processing (e.g.: TAP1 and TAP2), immune regulation (e.g.: IL-6, INDO, CD80, SLP2) or leukocytes emigration (e.g. CXCL3 and CXCR4). Clearly this list indicates that a number of mRNAs expressed during DC maturation and important for their immuno-modulatory function are regulated at the translational level, such as Indoleamine 2,3-dioxygenase (IDO or INDO). IDO is a potent immuno-regulatory enzyme that degrades the essential amino acid tryptophan and results in a rise in uncharged tRNA, which activates the GCN2 kinase and downstream signaling such as the phosphorylation of eIF2α. Thus, IDO is likely to be preferentially translated in conditions of eIF2α phosphorylation and might therefore be regulated at the translational level.

Specific ribosomal proteins are translationally regulated in activated moDCs

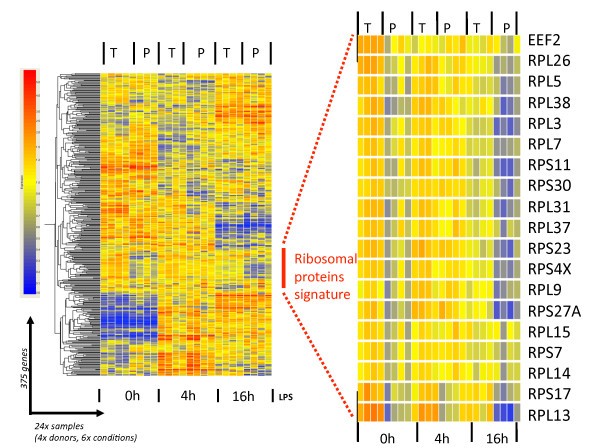

To complement the Ingenuity pathway analysis and identify co-regulated mRNAs during DC- activation, the 375 translationally regulated transcripts were clustered on a heat-map using Genespring default setting. Once again, the most obvious cluster of translationally regulated mRNAs was a group of 11 different large ribosomal subunit proteins and translation factor genes, which are part of the protein synthesis pathway identified during the Ingenuity pathway analysis and validated by qPCR (Figure 5). The gene expression signals for this cluster containing, RPL3, RPL5, RPL7, RPL9, RPL13, RPL14, RPL15, RPL26, RPL31, RPL37 and RPL38 was considerably reduced in the polysomal-bound mRNAs compared to total mRNA signals at 0 h and 16 h post-LPS activation. Comparatively no significant difference among the two RNA types was detected after 4 h of LPS stimulation, suggesting that these RPL mRNAs were engaged in translation at this early time of DC activation. Thus, RPL transcripts seem to undergo "translational engagement" between 0 h and 4 h, followed by "translational disengagement" between 4 h and 16 h, thus matching the observed rate of protein synthesis in DCs. Transcription of ribosomal protein genes starts at a C-residue that is embedded in an oligopyrimidine tract of length 5-25 base pairs, also known as the 5'-TOP signal. The 5'-TOP signal is an essential cis-regulatory motif for the translational control of most ribosomal protein mRNAs expression [18, 19]. A preponderance of evidence suggests that translation of mRNAs containing a 5'-TOP signal is strongly up-regulated in response to ribosome protein S6 phosphorylation triggered by mTORC1 stimulation and subsequent S6K1 activation. In addition to ribosomal proteins mRNAs, TOP mRNAs include also those coding for several translation elongation factors such as eEF2, indicating that most of the translationally down-regulated genes identified in DCs during their response to LPS contain a 5'-TOP signal.

In recent years, several reports have also suggested that translation of TOP mRNAs can be independent of S6 phosphorylation [20, 21]. In activated DCs, S6 phosphorylation correlates well with the translational engagement of the ribosomal proteins after 4 h of LPS stimulation (Figure 5, 4h). However even if the intensity of S6 phosphorylation keeps increasing during the following 12 h of DC maturation, several of the large ribosomal protein mRNAs are nevertheless clearly disengaged from polysomes. Thus, although S6 phosphorylation is likely to favor translational engagement of 5'-TOP containing mRNAs, it does not counteract their increased release from the ribosomes.

A role for ribosome proteins (RLP) outside of translation is emerging, however most of the current knowledge about these proteins links them with specific translation regulation activity including ER-binding for RLP7 and control of survival for RPL5, 11, 23 and 26 [22]. Indeed, these particular RLPs are involved in the murine double minute protein (MDM2)-mediated p53 pathway regulation [23]. Mdm2 is a E3-ubiquitin ligase known to regulate p53 levels directly by promoting its degradation and indirectly by targeting ribosomal protein L26, which normally binds the p53 mRNA and augments its translation. As the ribosomal protein L26 (RPL26) represents an important component of the auto-regulatory feedback loop that maintains low p53 activity in non-stressed cells [22], we further investigated the regulation of RPL26 at the mRNA and protein levels in activated DCs. Although RPL26 mRNA gene expression was stable upon-LPS stimulation, its polysomal-bound engagement was lost at 16 h, as identified by microarrays and confirmed by qPCR (Figure 6A). More importantly, RPL26 protein expression was down-regulated by 80% after 16 h of LPS- mediated activation, correlating with the down-regulation of polysomal-bound mRNAs (Figure 6B).

The translation regulation of ribosomal protein mRNAs is one of the features of LPS-activated human DCs. In the early phase of DC maturation, a specific increase in ribososomal proteins synthesis might impact positively on the global translation enhancement in response to TLR-4 engagement and subsequent PI3K activation, while a reduction at later time might favor a decrease in translation intensity. The reduction in RPL26 might also have a specific effect on the survival of activated DCs. Although many aspects of the non-translational role of ribosomal proteins remain to be investigated, it is noteworthy to underline that several ribosomal protein (RLP4, RLP22 and RLP35) and translation factors (eEF1d) mRNAs represent the most significant genes up-regulated in a statistical group comparison performed to identified genes differentially expressed in Systemic onset juvenile idiopathic arthritis (SoJIA) patients compared with healthy children [24]. SoJIA patients are also characterized by abundant production of interleukin (IL)-1, which is an important mediator of this disease and can be induced in DCs by LPS, thus creating an additional link between 5'-TOP containing mRNAs and inflammatory conditions. Our results on the characterization of RPL26 mRNA and its protein expression strongly support our conclusion that other RLP genes belong to a cluster being translationally regulated during DC maturation. Translation regulation therefore appears as a key function to control specific gene expression and more precise analysis combining traditional gene expression arrays and translation profiling will have to be carried-out to follow the immune response and host-pathogen interactions and single-out functionally important mRNAs regulated at the translation level.

Cell Culture

Fresh human leukapheresis products were obtained from the EFS (Marseille, France). Human peripheral blood mononuclear cells (PBMC) were isolated by Ficoll-PaqueTM PLUS (Amersham Biosciences, Uppsala, Sweden), washed four times with RPMI and CD14⁺ cells were immunomagnetically purified with AutoMACS system following the protocol of the manufacturer (Miltenyi Biotech, Auburn, CA). Purified CD14⁺ monocytes were analyzed using a FACSCalibur (Becton Dickinson, San Jose, CA), confirming the purity of CD14⁺ cells to be 95%. To promote differentiation into iDC, the purified CD14⁺ cells (0.5 × 10⁶ cells/ml) were plated in 6-well plates (2 × 10⁶ cells/well) and cultured in RPMI 1640 medium supplemented with 10% FCS, non essential amino acids, penicillin/streptomycin 100 ng/mL (>1000 U/ml), recombinant human GM-CSF and 20 ng/mL (>100 U/ml) IL-4 for 5 days (both from PeproTech, Rocky Hill, NJ). At days 2 and 4, half of the volume of the medium was replaced by fresh medium supplemented with GM-CSF and IL-4. For DC maturation, 100 ng/mL LPS (Escherichia coli type 026:B6; Sigma-Aldrich, St. Louis, MO) was added to the cells at day 5, for the indicated number of hours.

Polysomal profiling by sucrose gradient fractionation

Polysome-bound mRNA molecules were enriched by sucrose gradient fractionation following the protocol originally developed by Garcia-Sanz and collaborators [25]. Briefly, 60 to 80 × 10⁶ day 5 human moDCs were lysed in 1 ml of polysome buffer (10 mM Tris-HCl (pH 8), 140 mM NaCl, 1.5 mM MgCl2, 0.5% NP40, 0.1 mg/ml cycloheximide, and 500 units/mL RNasin (Promega, Madison, WI). After 10 min on ice, lysates were quickly centrifuged (10.000 × g for 10 sec at 4°C) and the supernatant was resuspended in a stabilizing solution (0.2 mg/ml cycloheximide, 0.7 mg/ml heparin, 1 mM phenylmethanesulfonyl fluoride). After a quick centrifugation (12.000 × g for 2 min at 4°C) to remove mitochondria and membrane debris, the resulting supernatant was layered on a 15% to 40% sucrose gradient. Gradients were then ultracentrifuged (35.000 × g for 2 h at 4°C, SW41 rotor) and after centrifugation 20 × 550 ml fractions were collected, starting from the top of the gradient. All the fractions were then digested with Proteinase K (200 mg/ml) in presence of 1%SDS and 10 mM EDTA. RNA was then extracted with Phenol/Chloroform/Isoamylalcohol (volume ratio 25:24:1) and precipitated with 2.5 Volumes of 100% Ethanol in presence of 0.8 M lithium chloride, necessary to get rid of heparin, a known inhibitor of RT activity [26]. After precipitation all the RNA were resuspended in 20 ml RNase free H₂O. The correct fractionation of the polysomes was tested by detecting the different rRNA types on a 1% denaturing agarose gel. Total RNA was directly extracted out of moDCs without fractionation. Total and polysomal-bound RNAwere purified using the RNeasy miniprep kit (Qiagen, Chatsworth, CA). To exclude theamplification of genomic DNA, an on-column DNase digestion was performed using the RNase-Free DNase Set (Qiagen). The RNA Integrity Number (RIN-value) of all RNA types and timepoints was measured with the Agilent 2100 Bioanalyzer. RIN-values between 6.5 and 8.5 (mean RIN value = 7.6) were obtained, indicating that the RNA had sufficient integrity to be analyzed by microarrays.

Affymetrix microarray hybridization and data mining

For each condition 100 ng of total or polysomal-bound RNA were employed to synthesize double-stranded cDNA using two successive reverse-transcription reactions according to standard Affymetrix protocols (GeneChip Two-Cycle Target Labelling, Affymetrix, Santa Clara, CA). Linear amplification with T7-RNA polymerase and biotin labelling were performed by in vitro transcription by standard Affymetrix procedures. The resulting biotin-labeled cRNA was fragmented and hybridized to the Affymetrix Human Genome U133 2.0 oligonucleotide 14,500-gene microarray chip for 16 h at 45°C. Following hybridization, the probe array was washed and stained on a fluidics station and immediately scanned on a Affymetrix GCS 3000 GeneArray Scanner. The data generated from the scan were then analyzed using the MicroArray Suite software (MAS 5.0, Affymetrix). The data derived from four independent experiments were normalized using the GC-RMA algorithm and bioinformatic analysis was performed using GeneSpring GX 7.3 (Agilent, Palo Alto, CA) and Statistics Analysis System (SAS v9.1.3). Probe selection was performed using 2-way ANOVAs accounting for repeated measures with a false discovery rate of 0.05. Hierarchical clustering was performed using the default clustering algorithm and setting in GX7.3.

Quantitative real-time RT-PCR

Total RNA was extracted and purified using the RNeasy kit (Qiagen). To exclude the amplification of genomic DNA, an on-column DNase digestion was performed using the RNase-Free DNase Set (Qiagen). 1 μg of RNA was retro-transcribed using SuperScript II reverse transcriptase (Invitrogen) and random (pDN6) primers. First-strand cDNA templates were then used for PCR amplification of short (100 to 150 bp) exon fragments of the gene of interest using the appropriate primers (Additional file 4 shows the complete list of the 375 probe sets with statistically significant interaction). PCR was carried out using a Stratagene MX3000P Real-Time PCR System in complete SYBR Green PCR buffer (PE Biosystems, Warrington, UK) using 200 nM of each specific primer. A total of 20 μl of PCR mix was added to 5 μl of cDNA template, and the amplification was tracked via SYBR Green incorporation by using a Stratagene (La Jolla, CA) sequence detection system 4.01. Comparative real-time PCR was done in triplicate, including no-template controls. A dissociation curve was generated at the end of each PCR cycle to verify that a single product was amplified. Relative quantification of target cDNA was determined by calculating the difference in cross-threshold (C _t) values after normalization to GAPDH signals, according to the Pfaffl method and the automated Excel-based program available (REST^©). The sequences of all employed primers are available in Additional file 7.

Immunodetection and antibodies

50 μg of TX-100 soluble material or 200.000 cells, lysed directly in Laemmli buffer, were loaded on 10% SDS-PAGE prior to immunoblotting and chemiluminescence detection (SuperSignal, Pierce, USA). SUnSET was performed as previously described [14] using A647-labelled mouse IgG2a anti-puromycin antibody (12D10). Antibody against RPL26 was from Abnova. For flow cytometry analysis, APC-conjugated anti-HLA-DR (L243 clone) and PE-conjugated anti-CD86 (clone IT2.2) were from BD PharMingen (San Jose, CA, USA). Anti- eIF2, phospho-eIF2 and -phospho-S6 were from Cell Signaling Technology (Beverly, MA, USA). For immunofluorescence analysis, MoDCs were let adhere on Alcyan blue coated-coverslips and surface stained with unlabelled antibody at 4°C for 30 min. After washes, coverslips were placed in warm medium for the indicated time and then fixed in 3% PFA for conventional staining with secondary antibodies.

GEO Reviewers Link

Following link has been created to allow read-only access review of record GSE14000 and associated accessions, which are the Affymetrix gene expression data related to the submitted manuscript.

http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?token=jlalxuycqigwqnw&acc=GSE14000
